SMT-980W

Continuous Sealer (Horizontal)

Sealing Speeds:	Sealing Speeds:
Sealing Width:	10mm
Conveyor Loading:	≤10kg
Shipment Dimension:	965x430x365mm

Select variant:

SMT-980W stainless steel SMT-980W Painting

Certification:

Get in touch now!

Product Applications

Product Description

Supports both vertical and horizontal dual-purpose modes to adapt to diverse processing scenarios, with transmission speeds up to 26 meters per minute, balancing efficient production with flexible application.

Features Overview

Constructed from 59-grade copper material, it features rapid heating, rapid cooling, and precise temperature control capabilities, significantly optimizing processing efficiency while reducing part wear. Combined with high-precision infrared sensors, it not only substantially enhances temperature regulation accuracy but also further extends equipment service life.

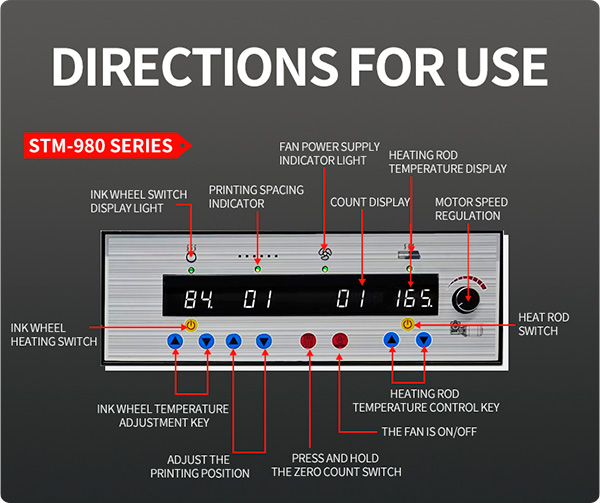

Control Panel: PC-based smart control panel with fully integrated counting functionality
Core Motor: Pure copper 80-watt high-torque motor (26 meters per minute)
Wiring: National standard copper wire
Safety Protection: Equipped with safety circuit breaker
Material: Pure refined copper heating block

Technical Parameters

SMT-980W

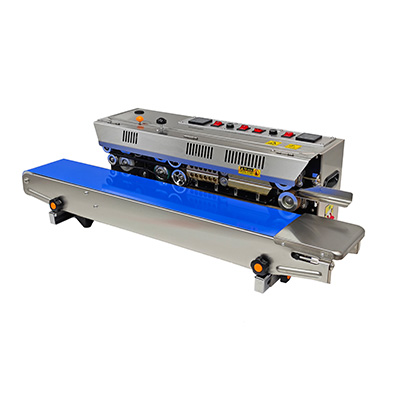

SMT-980W stainless steel

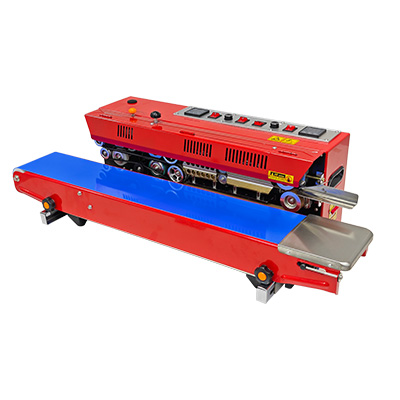

SMT-980W Painting

Supply voltage	AC220V/50Hz 110V/60Hz
Motor power	80W
Electric heating power	280w*2
Sealing speed	0-26m/min
Sealing width	10mm
Remote control range	0-260℃
Total conveying load	≤10Kg
Outer packing size	965×430×365mm
Net weight/gross weight	26Kg/29Kg

NOTE: THE SIZE IS MEASURED BY HAND, AND IT IS NORMAL TO HAVE A SLIGHT ERROR

Supply voltage	AC220V/50Hz 110V/60Hz
Motor power	80W
Electric heating power	280w*2
Sealing speed	0-26m/min
Sealing width	10mm
Remote control range	0-260℃
Total conveying load	≤10Kg
Outer packing size	965×430×365mm
Net weight/gross weight	26Kg/29Kg

NOTE: THE SIZE IS MEASURED BY HAND, AND IT IS NORMAL TO HAVE A SLIGHT ERROR

Supply voltage	AC220V/50Hz 110V/60Hz
Motor power	80W
Electric heating power	280w*2
Sealing speed	0-28m/min
Sealing width	10mm
Remote control range	0-260℃
Total conveying load	≤10Kg
Outer packing size	965×430×365mm
Net weight/gross weight	26Kg/29Kg

NOTE: THE SIZE IS MEASURED BY HAND, AND IT IS NORMAL TO HAVE A SLIGHT ERROR

Equipment Details

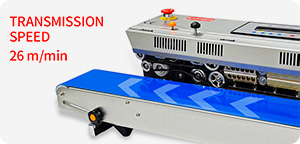

High-speed sealing,transmission speed26 m/min

Switchpress to stop and turn on to work

Made of 59# copper materiall tcan quickly heat up, quickly cool down and shape, and adiust the temperature accurately

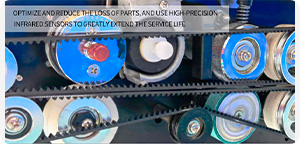

Optimize and reduce the loss of parts, and use high-precisioninfrared sensors to greatly extend the service life

Product Comparison

Kunba's Equipment

Other Brands

Pure Copper 80-Watt High-Power Motor (26 meters per minute)

CORE MOTOR

Non-Copper Fake 80-Watt Low-Power Motor (14 meters per minute)

National Standard Copper Wire

ELECTRICITY IS SAFE

Non-Standard Aluminum Wire

With safety air switch

SECURITY PROTECTION

Without safety air switch

Pure Refined Copper Heating Block

MATERIAL COMPARISON

Copper-Plated Heating Block

PC Version Smart Control Panel with Fully Integrated Counting Function

CONTROL PANEL

Features an upper control panel design; lower temperature control gauge and lower switch

59# Pure Copper, Weight 682g CNC Cutting Process

COOLING FAST

Aluminum-Copper Plating Weight 123.9g, Casting Process

Optional Accessories

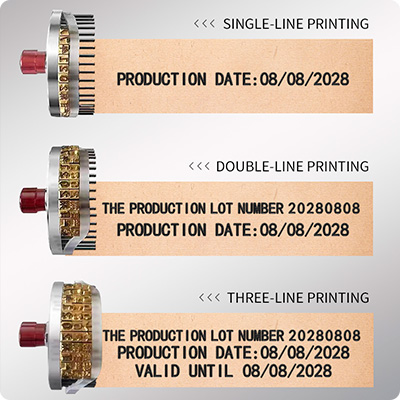

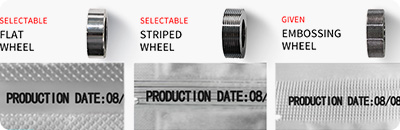

Multi-Line Printing

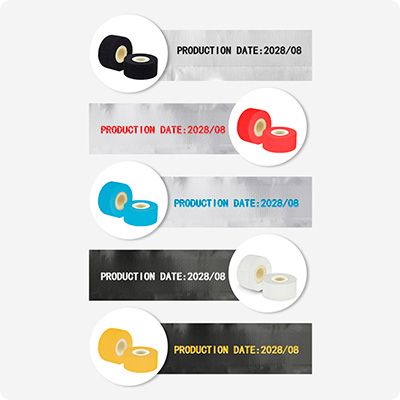

Color Printing

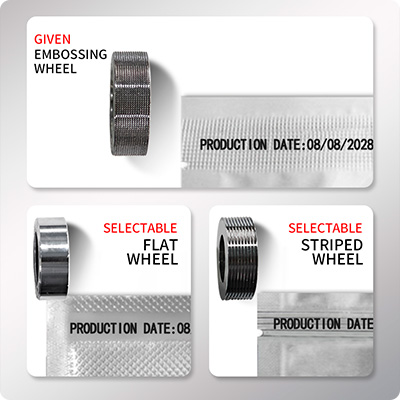

Optional Steel Stamping

Customizable Features

Dual-sided heating

Widen the Sealing to 2cm

Optional printing wheels available

Customizable product transport direction based on operational preferences

Vertical frame height selectable

Optional conveyor belt width

FAQ

What types of vacuum packaging machines do you offer?

We offer a wide range of vacuum packaging machines, including tabletop vacuum packaging machines, vacuum laminating packaging machines, floor standing vacuum packaging machines, external vacuum packaging machines and more. Each type of machine is designed to meet different packaging needs.

What are the advantages of tabletop vacuum sealing machine compared with other types of vacuum sealing machine?
