Product Description
Parameters
| Model | DZ500/ZT |
| ultimate vacuum | 0.1hpa |
| vacuum chamber depth | 70mm |
| power supply | AC220V/50HZ 110V/60HZ |
| pump capacity | 20m3/h |

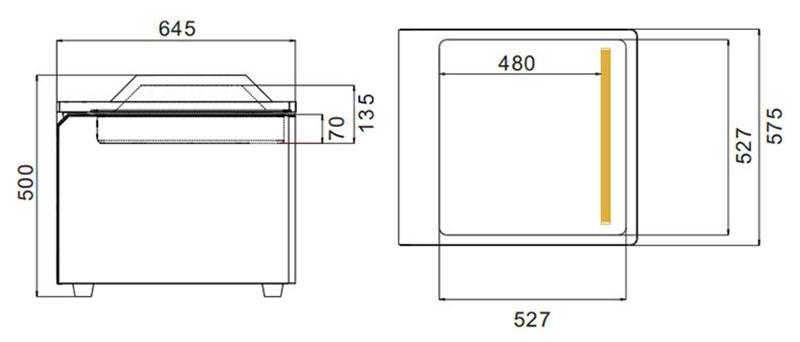

| machine size | 540*490*500mm |
| motor powerheat sealing power | 0.8KW |
| sealing length | 490mm |
| shipment dimension | 750*700*615mm |
| Heat sealing power | 0.8KW |
| sealing width | 10MM |
| N.W./G.W | 77kg/90kg |
Parameter Comparison
 |
|
|
|||
| Model | DZ400/ZT | Model | DZ450/ZT | Model | DZ500/ZT |
| ultimate vacuum | 0.1hpa | ultimate vacuum | 0.1hpa | ultimate vacuum | 0.1hpa |
| vacuum chamber depth | 65mm | vacuum chamber depth | 65mm | vacuum chamber depth | 70mm |
| power supply | 220V/50HZ 110V/60HZ | power supply | AC220V/50HZ 110V/60HZ | power supply | AC220V/50HZ 110V/60HZ |
| pump capacity | 20m3/h | pump capacity | 20m3/h | pump capacity | 20m3/h |
| machine size | 540*490*500mm | machine size | - | machine size | 540*490*500mm |
| motor powerheat sealing power | 0.9KW | motor powerheat sealing power | 0.6KW | motor powerheat sealing power | 0.8KW |
| sealing length | 390mm | sealing length | 440mm | sealing length | 490mm |
| shipment dimension | 640*590*630mm | shipment dimension | 670*660*615mm | shipment dimension | 750*700*615mm |
| Heat sealing power | 0.6KW | Heat sealing power | 0.6KW | Heat sealing power | 0.8KW |
| sealing width | 10MM | sealing width | 10MM | sealing width | 10MM |
| N.W./G.W | 62.5kg/77.5kg | N.W./G.W | 70kg/83kg | N.W./G.W | 77kg/90kg |
