Product Description

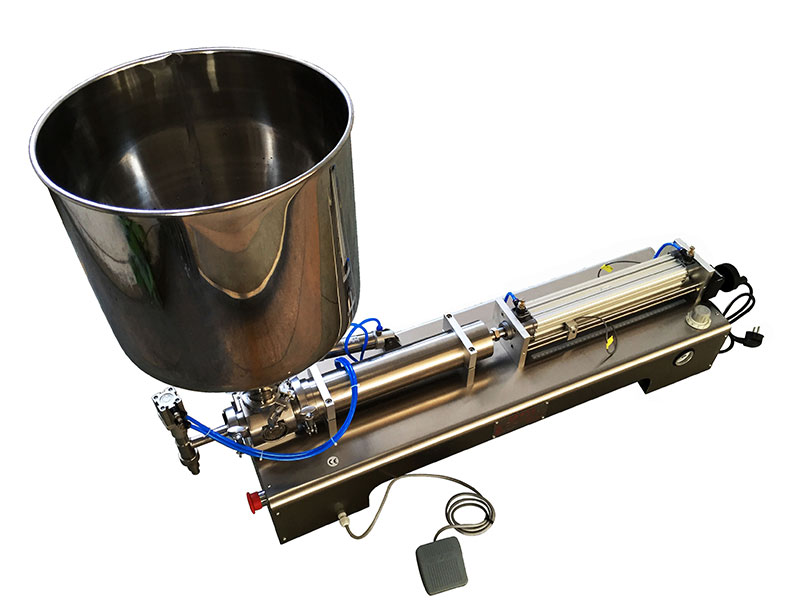

Machine details:
This model machine is suitable for high viscosity,Paste,Thick sauce with particles.
Also used for liquid products,Jams,Sauces,Peanut butter,Ketchup and so on.

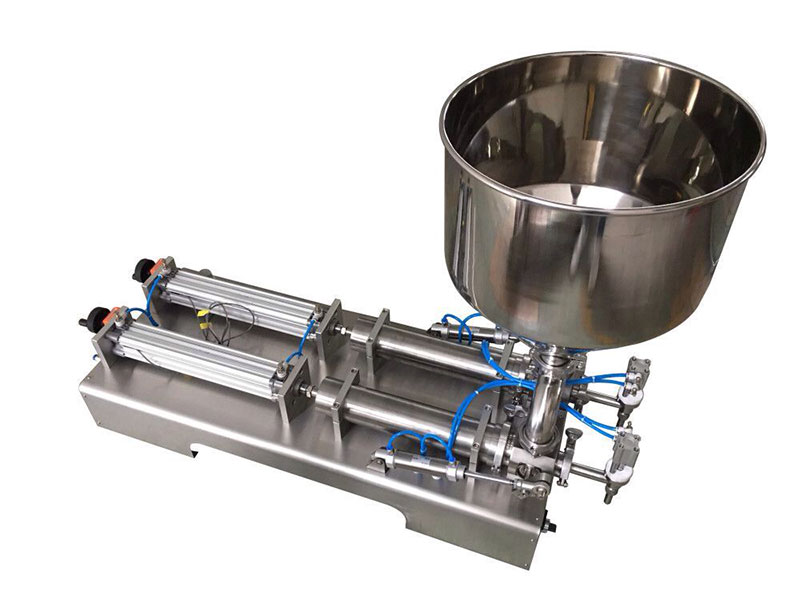

According to customers requests can be make 2,4...and more heads.
Technical Parameters:
| Model | G1/2WGD |
| Power | Electril & Pneumatic |
| 40W | |
| Air Pressure | 0.4-0.7Mpa |
| Machine Material | SS304&PTFE O-Rings |
| Cylinder Brand | Airtac-Taiwan |
| Filling Volume Range | 5-100ml,10-280ml,20-500ml,50-1000ml,500-2800ml,800-5000ml(adjustment) |
| Filling Speed | 10-30Bottles/min |
| Filling accuracy | ≤±0.2% |
| Machine Size | 1200*380*450mm |
| 500*500*400mm | |
| (Reference) | |
| Machine Weight | 30Kg-70Kg |
| G1WGD Price (1 Head) |
USD600(5-100ml,10-280ml) |
| USD650(20-500ml,50-1000ml) | |
| USD1000(500-2800ml,800-5000ml) | |
| G2WGD Price (2 Heads) |
USD850(5-100ml,10-280ml) |
| USD900(20-500ml,50-1000ml) | |
| USD1250(500-2800ml,800-5000ml) | |
| Delivery Time | 5-7 Workdays |
Note:We also have two options for different materials to choose it as below:
Food Grade:Silicon O-ring&Gaskets(White)
Industrial Grade:PTFE O-ring&Gaskets(Green)
