Product Description
Power supply: 3-phase 220V/60Hz 380V/50-60Hz
Technology Parameters
| Power Supply | AC380V/50Hz 220V/60Hz |
| Power Consumption | 0.75Kwx2 |
| Heat Sealing Power | 0.9Kw |
| Ultimate Vacuum | 0.1hPa(mbar) |
| Pump Capacity | 20m3/hx2 |
| /Sealing Length | 490mm |
| Sealing Width | 10mm |
| Shipment Dimension | 1340x740x1020mm |
| N.W&G.W | 182Kg/232Kg |
Efficiency of pump:
a) DZ400/2SB: 20cbm/hour
b) DZ500/2SB: 2 x 20cbm/hour
c) DZ600/2SB: 40cbm/hour
d) DZ700/2SB: 63cbm/hour

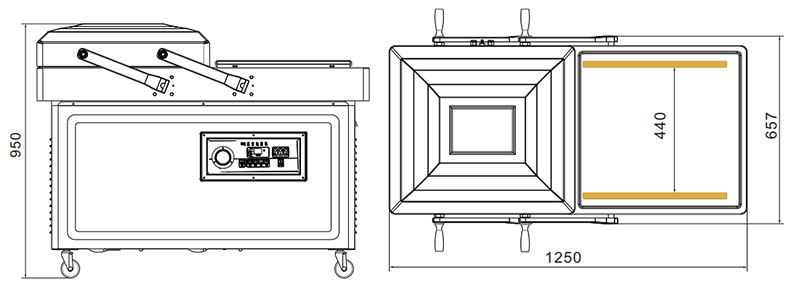

Vacuum chamber size:
a) DZ400/2SB: L440 x W440 x H115mm
b) DZ500/2SB: L480 x W550 x H115mm
c) DZ600/2SB: L630 x W650 x H115mm
d) DZ700/2SB: L720 x W780 x H150mm
Options:
a) Gas-flush system
b) Bush pump
c) Different chamber depth and sealing-bar position and heater element width Heavy moving wheel (with brake): The heavy moving wheel with high bearing capability, which makes customer moving easily
